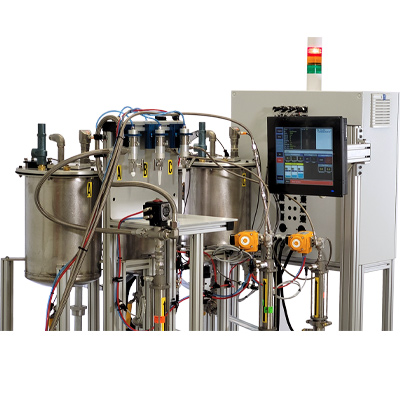

Custom 3 Component Meter Mix System
The Signature Series is our most customizable meter mix system featuring Fluid Research’s proprietary progressive cavity pump technology. Combined with our Sentinel Logic® platform, it is ideal for most dispensing requirements. It is designed to handle multi-component materials, up to three-part formulations. This system can be customized to meet even the most challenging meter mix dispense challenges and can easily integrate into automated work cells or production lines.
| Industrial computer controlled |
| 15” full color HMI touchscreen |
| Wear resistant, continuous flow Progressive Cavity Pumps |
| Nearly unlimited stored programs |
| Automation interface |
| Independent AC motors and drives |
| Multi-level password protection |
| Static mixing or disposable dynamic mixing |
| Stat-a-Seal dispense head |
| Level sensing |
| Ratio Range | 1:1 to 20:1 PBV |
| Flow Rate | 0.02 cc to 98 cc per second @ 1:1 PBV |
| Shot Size | 0.02 cc to 10,000 cc @ 1:1 PBV |
| Viscosity Range | 1 to 1,000,000 cps |
| Accuracy | +/- 1% |
| Shop Air | 100 psi 2-5 SCFM |
| Power | 120 – 240 VAC single phase and 208 VAC 3 phase, 50/60 Hz |
